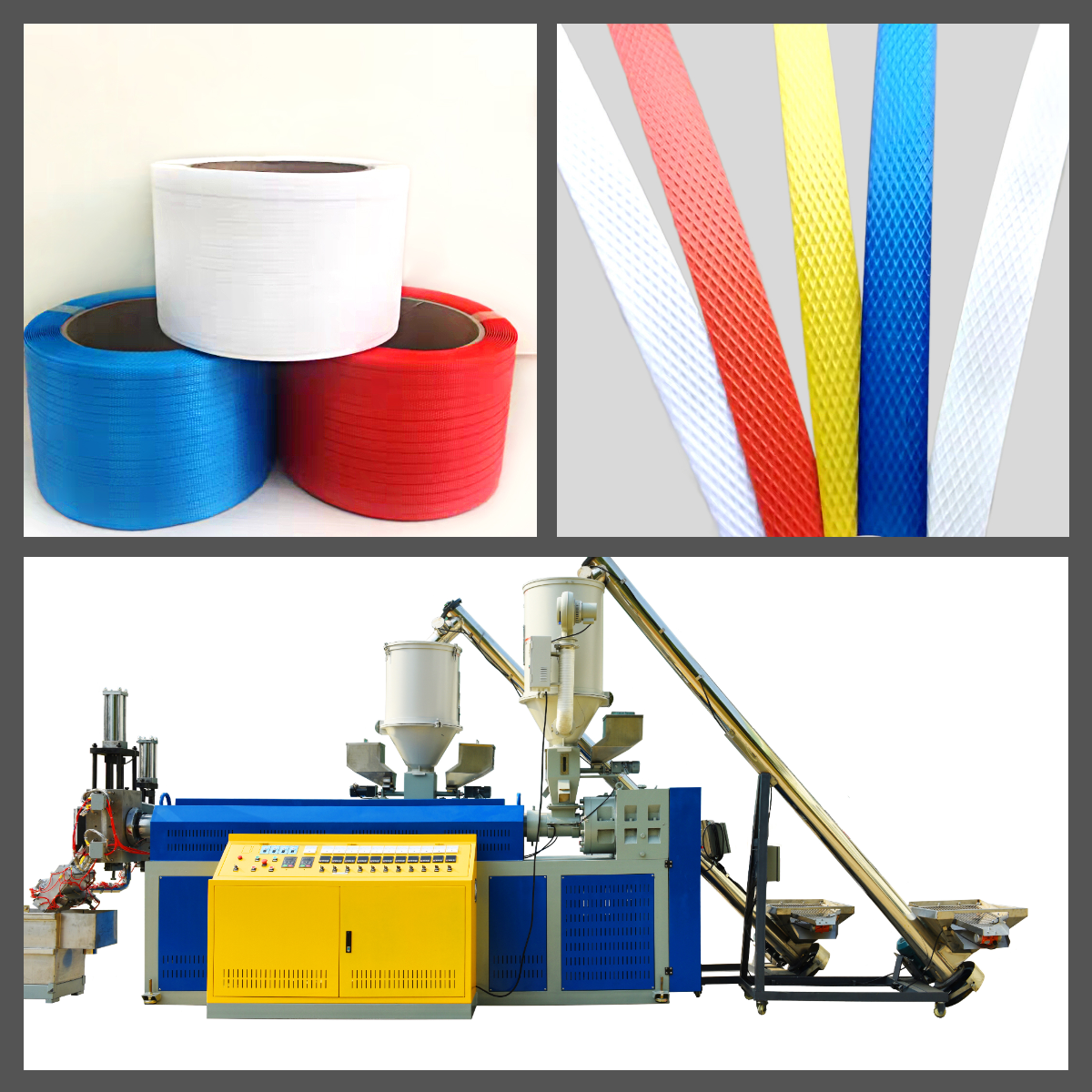

Automatic Plastic PP Strap Making Machine Band Belt Extruder 5-9mm 200kg/h
DESCRIPTION OF PP STRAP MAKING MACHINE
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
PP strapping production line 1 to 4 product parameters:
Name: PP 1 to 4 strapping production line
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.4-1.2mm
Production capacity: 200kg/h
Installation size: L38*W2.0*H4.0(m)
| Model No. | Screw Size | No. of strap | Capacity | Total Power | Width Range | Thickness Range | Installation Dimensions |
| JTPP-90 | 2800mm | 2 | 100kg/h | 80kw | 5-19mm | 0.4-1.2mm | 30*2.0*4.0M |
| JTPP-100 | 2800mm | 3 | 150kg/h | 90kw | 5-19mm | 0.4-1.2mm | 30*2.2*4.0M |
| JTPP-110 | 3300mm | 4 | 200kg/h | 100kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
| JTPP-110 | 3300mm | 6 | 130kg/h | 100kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
Plastic Strapping Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths, styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of plastic strap to use. Polypropylene Strapping Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in unrecoverable dead stretch and inability to return to its original length
Features of PP strapping production line:
1. This line is specially designed for the production of PP Straps. It can produce 2 or 4 PP Straps at the same time that saves energy by 20%-30%;
2. Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
3. PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
| Model | Strap Width | Strap Thickness | Break Load | Net Weight | Strap Length | Core Size |
| PP05005 | 5mm | 0.5mm | >40kg | 10kg | >6700M | 200mm |
| PP06006 | 6mm | 0.6mm | >50kg | 10kg | >5800M | 200mm |
| PP08005 | 8mm | 0.5mm | >60kg | 10kg | >3600M | 200mm |
| PP09005 | 9mm | 0.5mm | >80kg | 10kg | >3300M | 200mm |
| PP09006 | 9mm | 0.6mm | >90kg | 10kg | >3000M | 200mm |
| PP09007 | 9mm | 0.7mm | >100kg | 10kg | >2500M | 200mm |
| PP09008 | 9mm | 0.8mm | >120kg | 10kg | >2300M | 200mm |
| PP12006 | 12mm | 0.6mm | >120kg | 10kg | >2300M | 200mm |
| PP12007 | 12mm | 0.7mm | >130kg | 10kg | >2000M | 200mm |
| PP12008 | 12mm | 0.8mm | >150kg | 10kg | >1660M | 200mm |
| PP13506 | 13.5mm | 0.6mm | >130kg | 10kg | >2000M | 200mm |
| PP13507 | 13.5mm | 0.7mm | >150kg | 10kg | >1700M | 200mm |
| PP13508 | 13.5mm | 0.8mm | >160kg | 10kg | >1440M | 200mm |
| PP13510 | 13.5mm | 1.0mm | >170kg | 10kg | >1250M | 200mm |
| PP15005 | 15mm | 0.5mm | >130kg | 10kg | >2100M | 200mm |
| PP15006 | 15mm | 0.6mm | >140kg | 10kg | >1830M | 200mm |
| PP15008 | 15mm | 0.8mm | >160kg | 10kg | >1250M | 200mm |
| PP15010 | 15mm | 1.0mm | >180kg | 10kg | >1100M | 200mm |
| PP18008 | 18mm | 0.8mm | >220kg | 10kg | >1100M | 200mm |
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service.
Q2:When can I get my machine after I paid?
A2:We will deliver the machines on time as the date we agreed both side.
Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
